CTS 3.3KW 6.6KW 20KW Liquid/Air Cooled On Board Charger for EV Car Tricycle Forklift With Fast Charging Speed

Name: CTS 33KW 66KW 20KW LiquidAir Cooled On Board Charger for EV Car Tricycle Forklift With Fast Charging Speed
Brand: CTS OBC
Price: 285 USD

China CTS 3.3KW 6.6KW 20KW Liquid/Air Cooled On Board Charger for EV Car Tricycle Forklift With Fast Charging Speed wholesale

Brand Name : CTS OBC

Certification : MSDS/UN38.3

Place of Origin : Hunan, China

MOQ : 2

Price : 285~695

Payment Terms : T/T,Western Union,MoneyGram

Supply Ability : 3000pcs/month

Delivery Time : 25 working days

Packaging Details : Carton case

Version : 3.3KW/6.6KW

Output Power : 6600W@220VAC 3300W@110VAC

Cooling type : Air/liquid Cooling

Input Voltage : 110VAC~230VAC

DC Output Voltage : 48V-650V

IP Grade : IP67

Application : Electric car/tricycle/motorcycle/forklift charging

Weight : About 5kg/8kg

Contact Now

CTS 3.3KW 6.6KW 20KW Liquid/Air Cooled On Board Charger for EV Car Tricycle Forklift With Fast Charging Speed

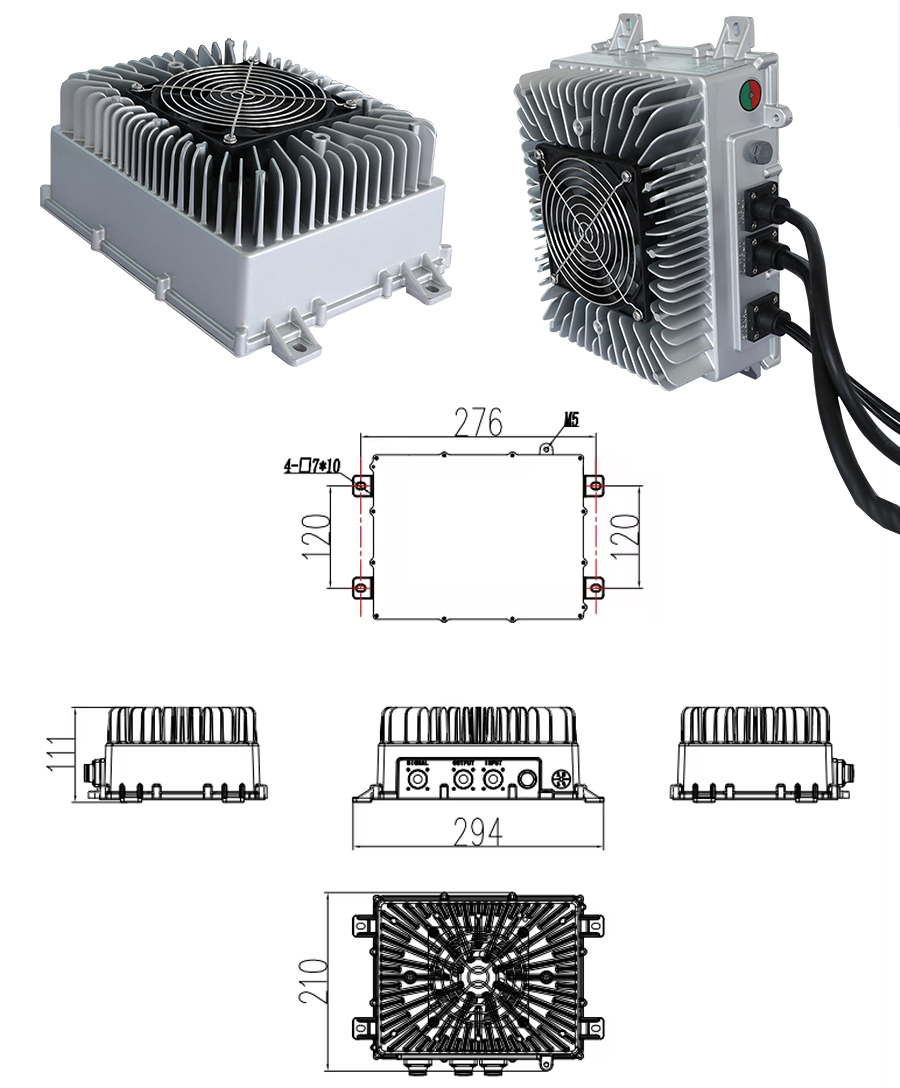

╣Dimension & Parameters

Product parameters of 3.3KW charger

Specifications models	Input Voltage Range	Rated Output Voltage	Max Output Voltage	Max Output Current
CTSC3-4840A	AC90~264V	48V	66.0V	40A
CTSC3-6040A	AC 90~264V	60V	82.5V	40A
CTSC3-7240A/7220C	AC90~264V	72V	99.0V	40A/20A
CTSC3-8440A/8420C	AC 90~264V	84V	115.5V	40A/20A
CTSC3-9632A	AC90~264V	96V	132V	32A
CTSC3-12025A	AC90~264V	120V	165V	25A
CTSC3-14423A	AC90~264V	144V	198V	23A
CTSC3-19210A	AC90~264V	192V	264V	10A
CTSC3-31210A	AC90~264V	312V	440V	10A
Dimensions:294×210×111(mm) Weight:6.2kg

Product parameters of 1.5KW charger

Specifications models	Input Voltage Range	Rated Output Voltage	Max Output Voltage	Max Output Current
CTSZ1P-1230A	AC90~264V	12V	16.5V	30A/30A
CTSZ1P-2430A	AC 90~264V	24V	33.0V	30A/30A
CTSZ1P-3625A	AC90~264V	36V	49.5V	25A/25A
CTSZ1P-4825A	AC 90~264V	48V	66.0V	25A/20A
CTSZ1P-6020A	AC90~264V	60V	82.5V	20A/15A
CTSZ1P-7218A	AC90~264V	72V	99.0V	18A/12A
CTSZ1P-8015A	AC90~264V	80V	110V	15A/11A
CTSZ1P-9610A	AC90~264V	96V	132V	10A
Dimensions:282×146×82(mm) Weight:3.0kg

Product parameters of 2KW charger

Specifications models	Input Voltage Range	Rated Output Voltage	Max Output Voltage	Max Output Current
CTSZ2P-2440A	AC 90~264V	24V	33.0V	40A/40A
CTSZ2P-3640A	AC90~264V	36V	49.5V	40A/30A
CTSZ2P-4835A	AC 90~264V	48V	66.0V	35A/25A
CTSZ2P-6030A	AC90~264V	60V	82.5V	30A/20A
CTSZ2P-7225A	AC90~264V	72V	99.0V	25A/18A
CTSZ2P-8022A	AC90~264V	80V	110V	22A
CTSZ2P-8418A	AC90~264V	84V	115V	18A/12A
CTSZ2P-9618A	AC90~264V	96V	132V	18A/10A
Dimensions:282×168×90(mm) Weight:3.8kg

AC Input Wide Voltage Range	AC90V~264V
AC Input Frequency Range	40~70Hz
With APFC function,Power Factor	≥0.98
Soft Switching Technology,Efficiency	≥93.0%
Protection Level	IP67
Operating Temperature	-40 ℃~+60 ℃
Storage Temperature	-55 ℃~+100 ℃
CAN Communication Function	optional
12V 5A Auxiliary Power Supply	optional
LED Light Indicator for Charging Process	standard

╣Advantages

Wide input voltage design, ranging from AC90V to AC264V, suitable for any voltage level in any region of the world.

Fully sealed thermal conductive silicone technology, protection level IP67, good shock resistance, good heat dissipation performance and long service life.

Wide temperature range: -40℃-+60℃, 100% full load aging test, soft switching technology; low switching loss of power devices, high efficiency (>93%), energy saving

Waterproof, shockproof, acid-proof, dust-proof, and reinforced isolation design ensure safe operation under harsh conditions.

The charger has a computer interface, and the charging mode can be adjusted on site. It is suitable for lead-acid batteries, lithium batteries and other batteries to achieve the best match. It is equipped with a CAN communication interface and can communicate with the BMS in real time.

Intelligent temperature compensation is performed on the battery during the charging process to avoid damage caused by overcharging or undercharging, and to maximize the battery life.

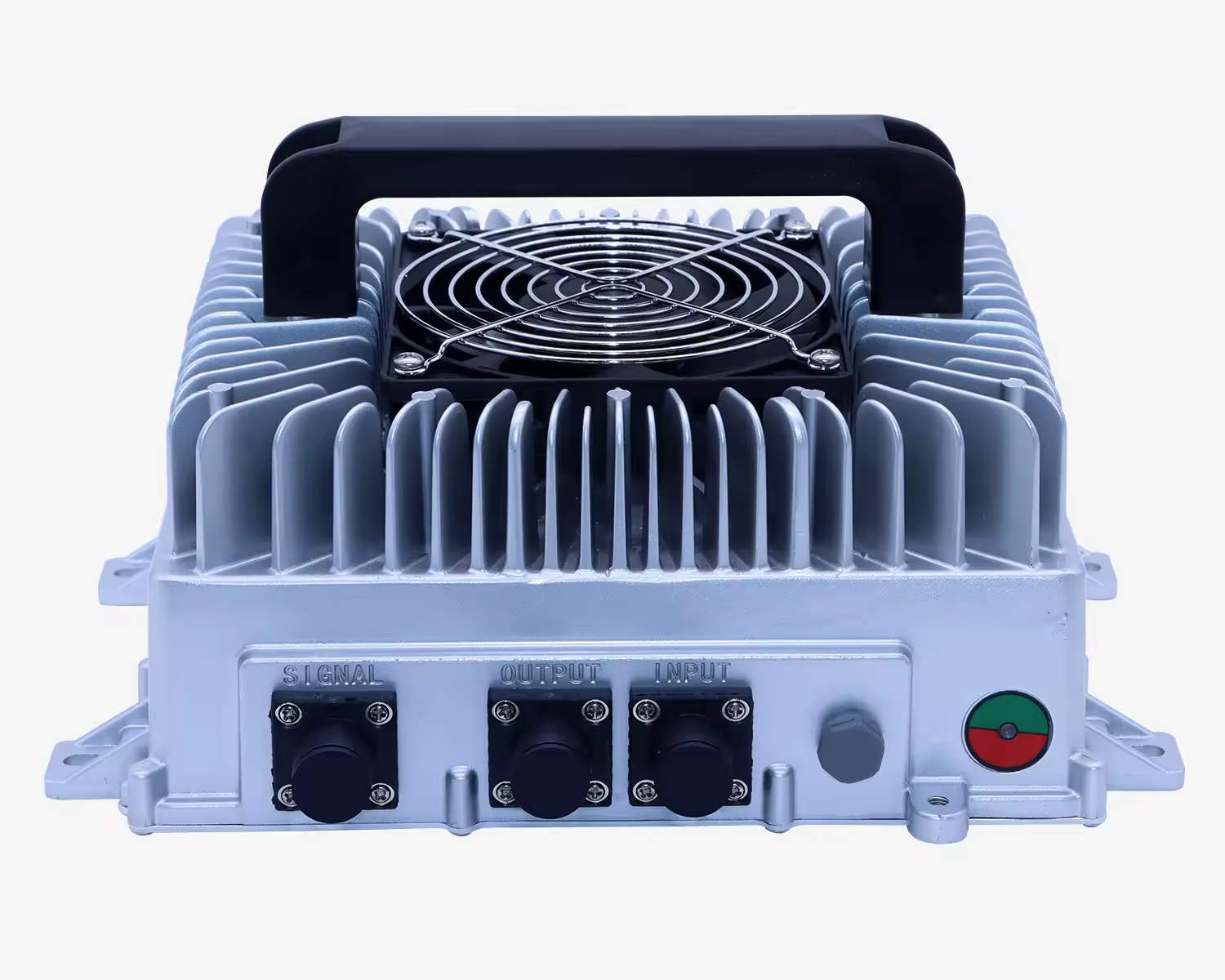

╣Input&output Connectors

╣Application

OBC charger is suitable for lithium batteries, lead-acid batteries, nickel-metal hydride batteries, etc. It can be used for cyclic charging of electric vehicles, motorcycles, sightseeing buses, forklifts, logistics vehicles, sanitation vehicles, golf carts, patrol vehicles, beach cars, ships, communication equipment, AGV intelligent robots, special equipment, etc.

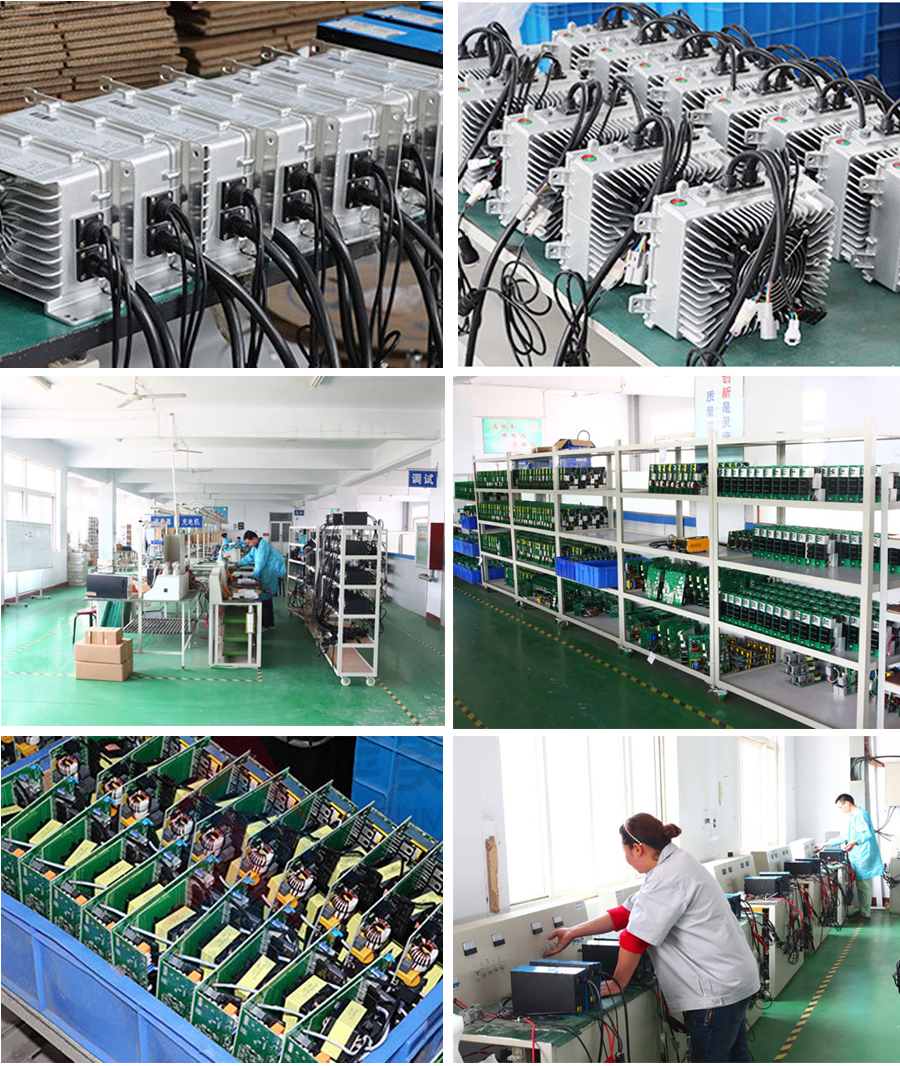

╣OUR FACTORY
