CTS BESS Solar Battery Storage System 75kwh 150kwh 300kwh Lifepo4 Battery Container For EV CCS2

Name: CTS BESS Solar Battery Storage System 75kwh 150kwh 300kwh Lifepo4 Battery Container For EV CCS2
Brand: CTS container battery
Price: 22000 USD

China CTS BESS Solar Battery Storage System 75kwh 150kwh 300kwh Lifepo4 Battery Container For EV CCS2 wholesale

Brand Name : CTS container battery

Model Number : 75kwh/150kwh/300kwh

Certification : ISO9001/MSDS/UN38.3/

Place of Origin : Changsha ,hunan province

MOQ : 1

Price : 22000USD~25000USD

Supply Ability : 3000pcs/month

Delivery Time : 35 work days

Packaging Details : wooden case

Product Type : battery powered EV fast charging station

Battery energy : 75kwh/150kwh/300kwh

Battery Type : Lifepo4 battery

Battery Volt : 768 V

Dimensions : 1680 mm x 2700 mm x 1700 mm

Weight : 2470kg

output voltage : 200VDC-750VDC

DC output power : 50KW/100KW/200KW

DC fast charger : CCS1/CCS2

Communication Protocol : rs485,CAN

Operating Temperature : -20~55 °C

Warranty Period : 5 years

Contact Now

CTS BESS solar battery storage system 75kwh 150kwh 300kwh Lifepo4 battery Container for EV Charging Stations CCS2

CTS BESS Solar Battery Storage System 75kwh 150kwh 300kwh Lifepo4 Battery Container For EV CCS2

	BP75-FCS50	ES150-FCS100	ES300-FCS200
Battery type	LiFePo4	LiFePo4	LiFePo4
Rated voltage	768V	768V	768V
Energy (25°C,0.5C)	76.8kWh	153.6kWh	307.2kWh
Output voltage	DC200V-750V	DC200V-750V	DC200V-750V
DC output power	50kW	100kW	200kW
DC output protocol	CCS2	CCS2	CCS2
AC Input voltage	400VAC	400VAC	400VAC
AC Input power	50kW	100kW	200kW
AC Input frequency	50/60HZ	50/60HZ	50/60HZ
Solar Input	Optional	Optional	Optional
Size(WDH)	168015001700mm	168027001700mm	168038301700mm
Weight	1395Kg	2470Kg	4620Kg
Charging mode	Manual/Scan/Password
Charge/discharge efficiency	>98%	>98%	>98%

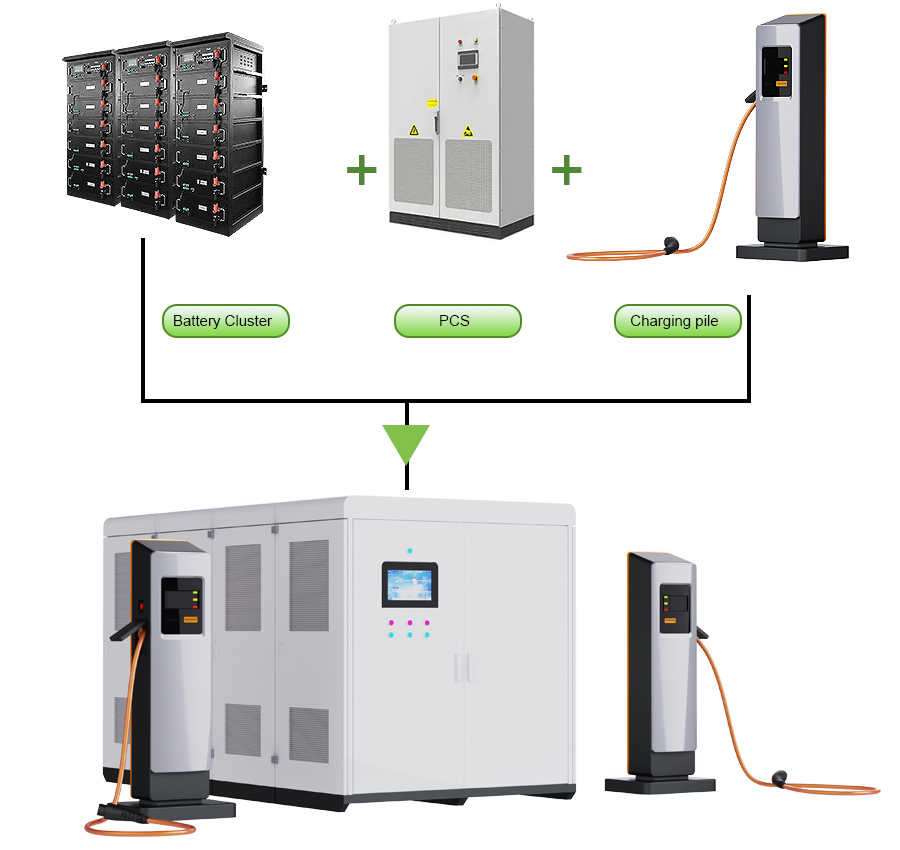

1.Integrated storage and charging

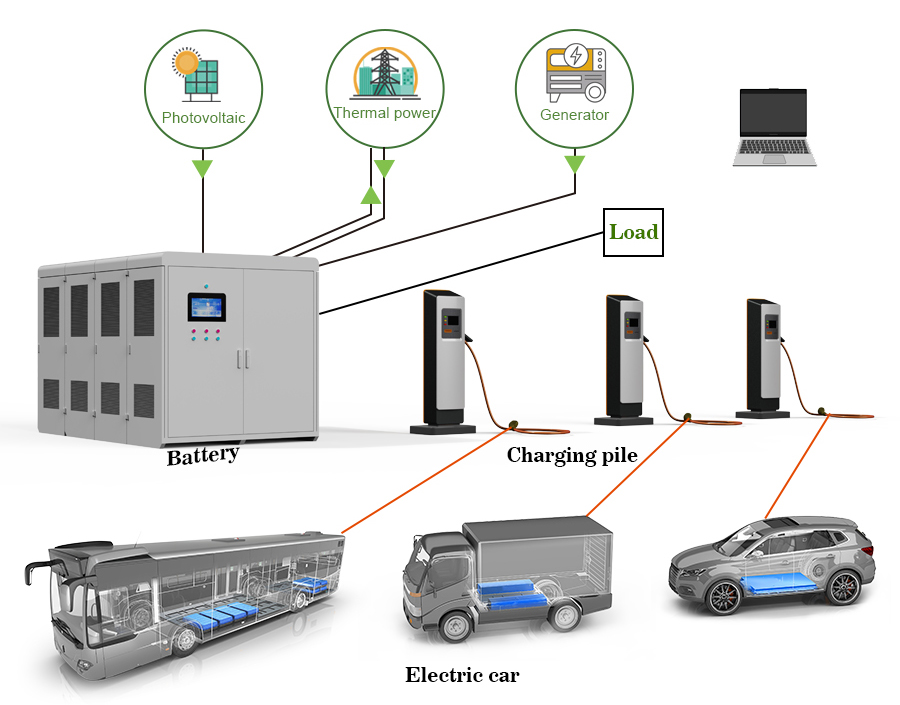

 It is used for the Solar storage and charging integrated charging station. GRES BESS combine multi-functional PCS with energy storage batteries, power grid, oil generators, photovoltaics, loads, etc., which can realize new energy power generation, storage of energy and scientific utilization of battery energy and power grid.

2. Reduce costs
 In some areas with large difference in peak and valley electricity prices, lithium batteries can store electricity when the
 electricity price is low, and release electricity when the electricity price is high, which can effectively reduce the charging
 cost.

3. Strong scalability Capacity Expansion: The system can increase or decrease the photovoltaic storage capacity according to demand, to adapt to different scales of energy storage needs.
Function Expansion: The system can add or remove specific unit modules as needed, to realize different functions. Grid Connection Expansion: The system can support grid-connected power supply and off-grid power supply, and can also realize uninterrupted power supply both on and off the grid.

4.Cooling method
 The integrated air conditioning system is designed with an overall IP54 rating, ensuring a suitable operating temperature for the batteries, improving system stability, and extending system lifespan.

5.Charging interface
 Are there charging guns other than the national standard?
 there are European, American, Japanese, and Chinese standard.
